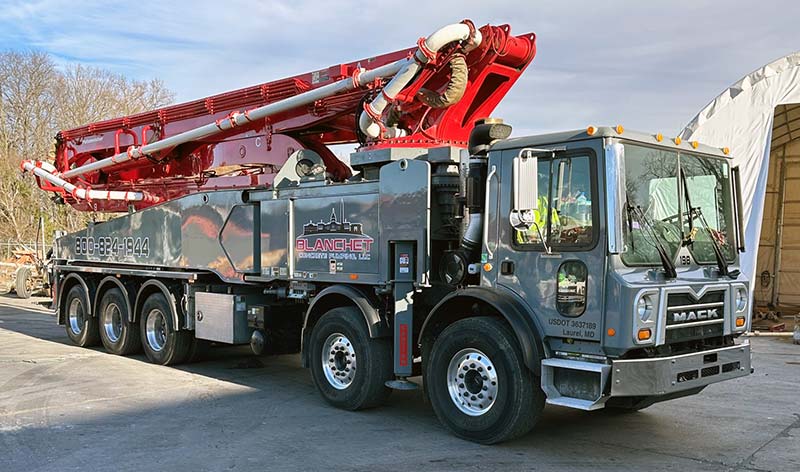

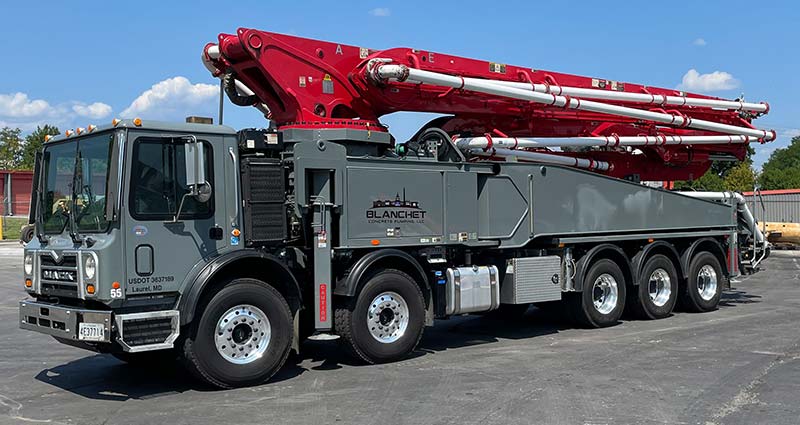

Putzmeister 51Z Concrete Pump

Blanchet Concrete Pumping 0 Like Post

The Putzmeister 51Z concrete pump combines proven components with the latest developments to reduce operating costs, increase operator safety and offer flexibility to meet job site needs.

Specifications

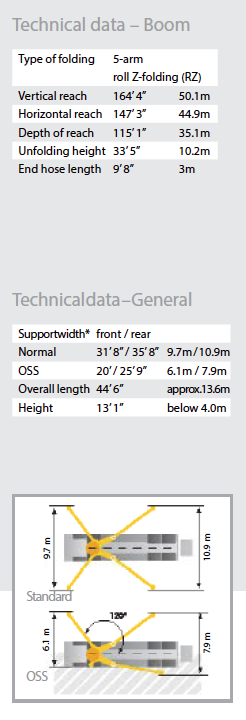

Technical data – Boom

Type of folder	5-arm roll Z-folding (RZ)
Vertical reach	164′ 4″	50.1m
Horizontal reach	147′ 3″	44.9m
Depth of reach	115′ 1″	35.1m
Unfolding height	33′ 5″	10.2m
End hose length	9′ 8″	3m

Technical data – General

Support width*	front / rear
Normal	31′ 8″ / 35′ 8″	9.7m / 10.9m
OSS	20′ 0″ / 25′ 9″	6.1m / 7.9m
Overall length	44′ 6″	approx. 13.6m
Height	13′ 1″	below 4.0m

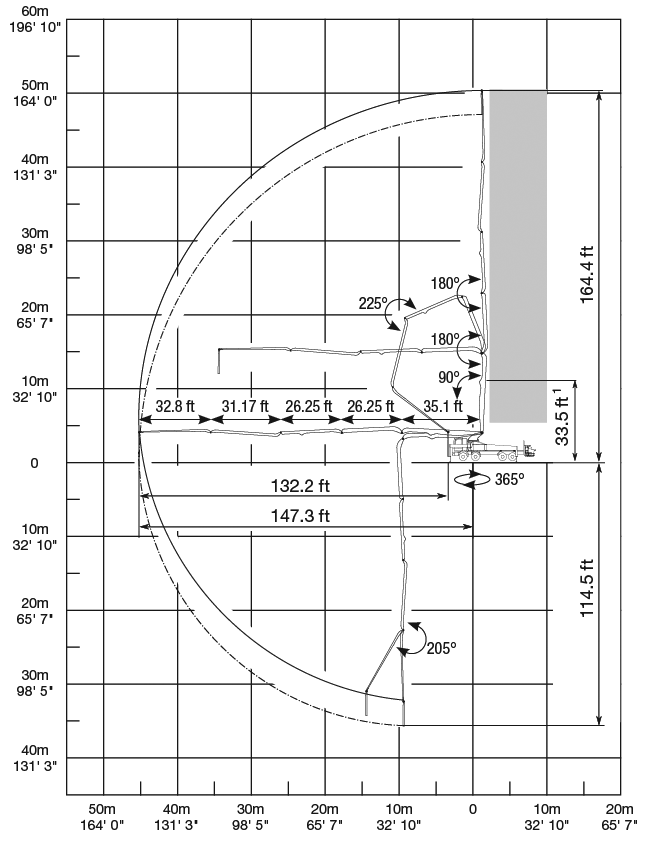

Range Diagram

Outrigger Spread
