Putzmeister 47Z Concrete Pump

The Putzmeister 47Z Truck-Mounted Concrete Pump features a 4-section placing boom with a 128′ 2″ net horizontal reach.

Specifications

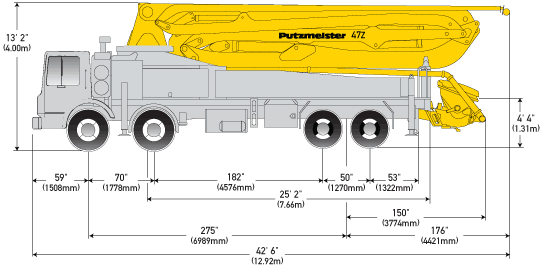

Based on Model MACK MRU 613 with .16H pump cell
Length	42′ 6″ (12.92m)
Width	8′ 2″ (2.50m)
Height	13′ 2″ (4.00m)
Wheelbase	275″ (6,989mm)
Front axle weight	34,500 lbs (15,600kg)
Rear axle weight	43,600 lbs (19,800kg)
Approx total weight	78,100 lbs (35,400kg)

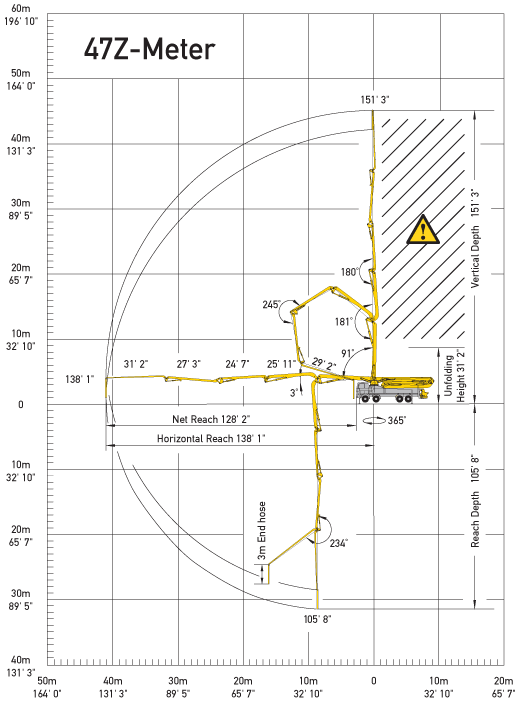

Reach from front of truck* 128′ 2″ (39.07m)

Reach depth 105′ 8″ (32.21m)

Unfolding height 31′ 2″ (9.50m)

Boom Section Articulation

1st section articulation 91°

2nd section articulation 181°

3rd section articulation 180°

4th section articulation 245°

5th section articulation 234°

Boom Section Length

1st section length 29′ 2″ (8.89m)

2nd section length 25′ 11″ (7.90m)

3rd section length 24′ 7″ (7.49m)

4th section length 27′ 3″ (8.31m)

5th section length 31′ 2″ (9.50m)

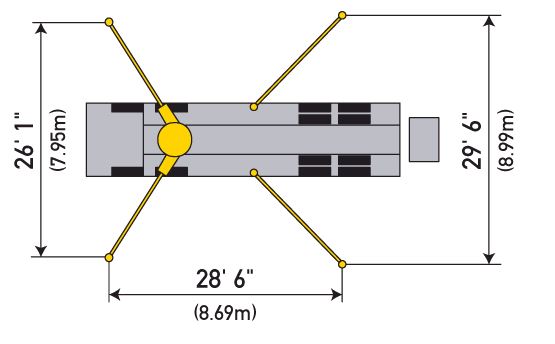

Outriggers

Outrigger spread: L-R-front hydraulically extend out & down 26′ 1″ (7.95m)

Outrigger spread: L-R-rear hydraulically swing out & extend 29′ 6″ (8.99m) down

Outrigger load: Front 60,698 lbf (270 kN)

Outrigger load: Rear 59,574 lbf (265 kN)

One-Sided Support (OSS) Outriggers

Safe operational zone 120°

Outrigger spread: L-R-front hydraulically extend out down 17′ 3″ (5.26m)

Outrigger spread: L-R-rear hydraulically swing out & extend 22′ 2″ (6.76m) down

Weights are approximate and include pump, boom, truck, driver and some fuel. Varies with options selected.
